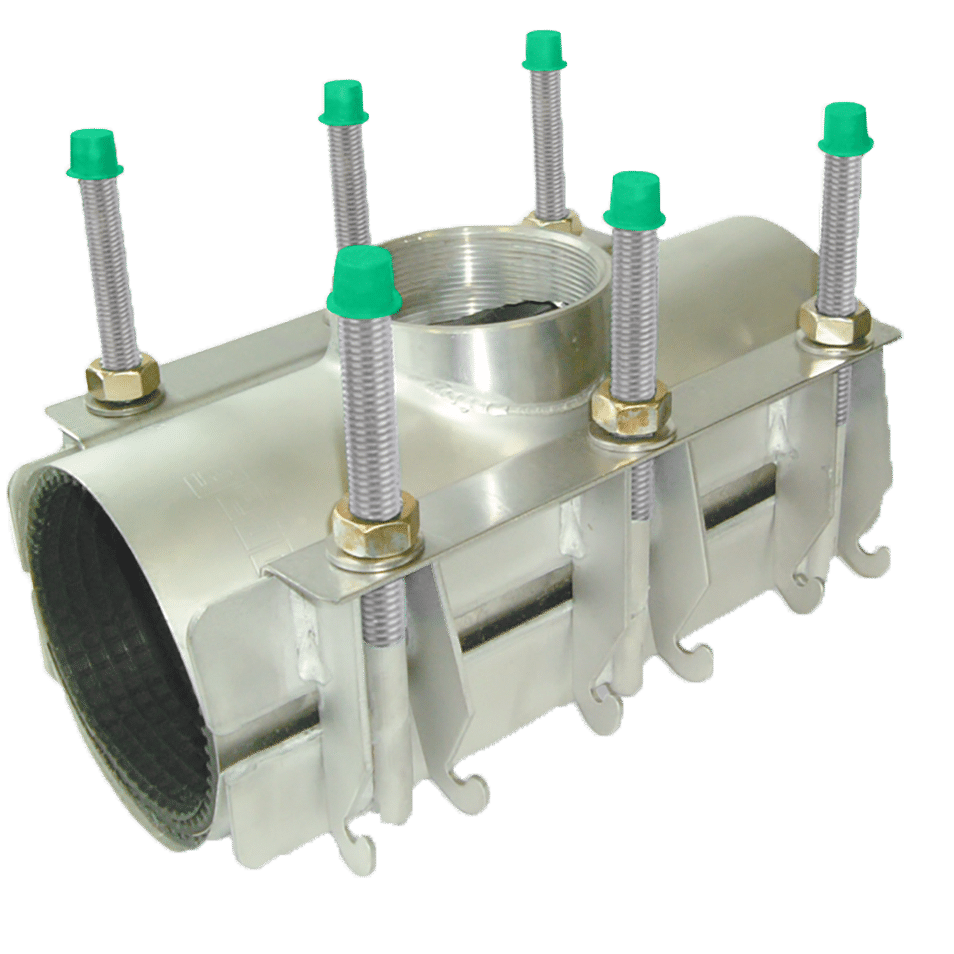

gebounifix Maxi with threaded outlet

GEBO / Products / gebounifix / gebounifix Maxi / gebounifix Maxi with threaded outlet

gebounifix Maxi with threaded outlet

About our Maxi with threaded outlet:

The standard seals used are made of EPDM (suitable for water), but seals made of NBR (for gas) are also available. The sealing features a honeycombed structure and ensures optimal sealing together with the O-ring seal at the outlet.

After welding all stainless steel parts are passivated to achieve high corrosion protection.

All products are also available in V4A stainless steel.

Threaded outlets:

Female thread: 1/2″ · 3/4″ · 1″ · 1 1/4″ · 1 1/2″ · 2″ · 2 1/2″ · 3″ · 4″
Male thread: 2 1/2″ · 3″
Female/male thread: 2″ female · 2 1/2″ male

Maxi

with threaded outlet

Connecting thread	Middle respectively Maxi 1* Pipe outer-Ø [mm]	Middle respectively Maxi 1* Installation length [mm]	Maxi 2 Pipe outer-Ø [mm]	Maxi 2 Installation length [mm]
1/2"	40– 44	150	88–110	200
3/4"	48– 55	150	88–110	200
1"	67– 74	150	88–110	200
1 1/4"	82– 89	150	88–110	200
1 1/2"	95–105	150	88–110	200
2"	95–105	150	88–110	200
2 1/2"	108–118	300	108–128	300
3"	–	–	108–128	400
4"	–	–	133–153	400
