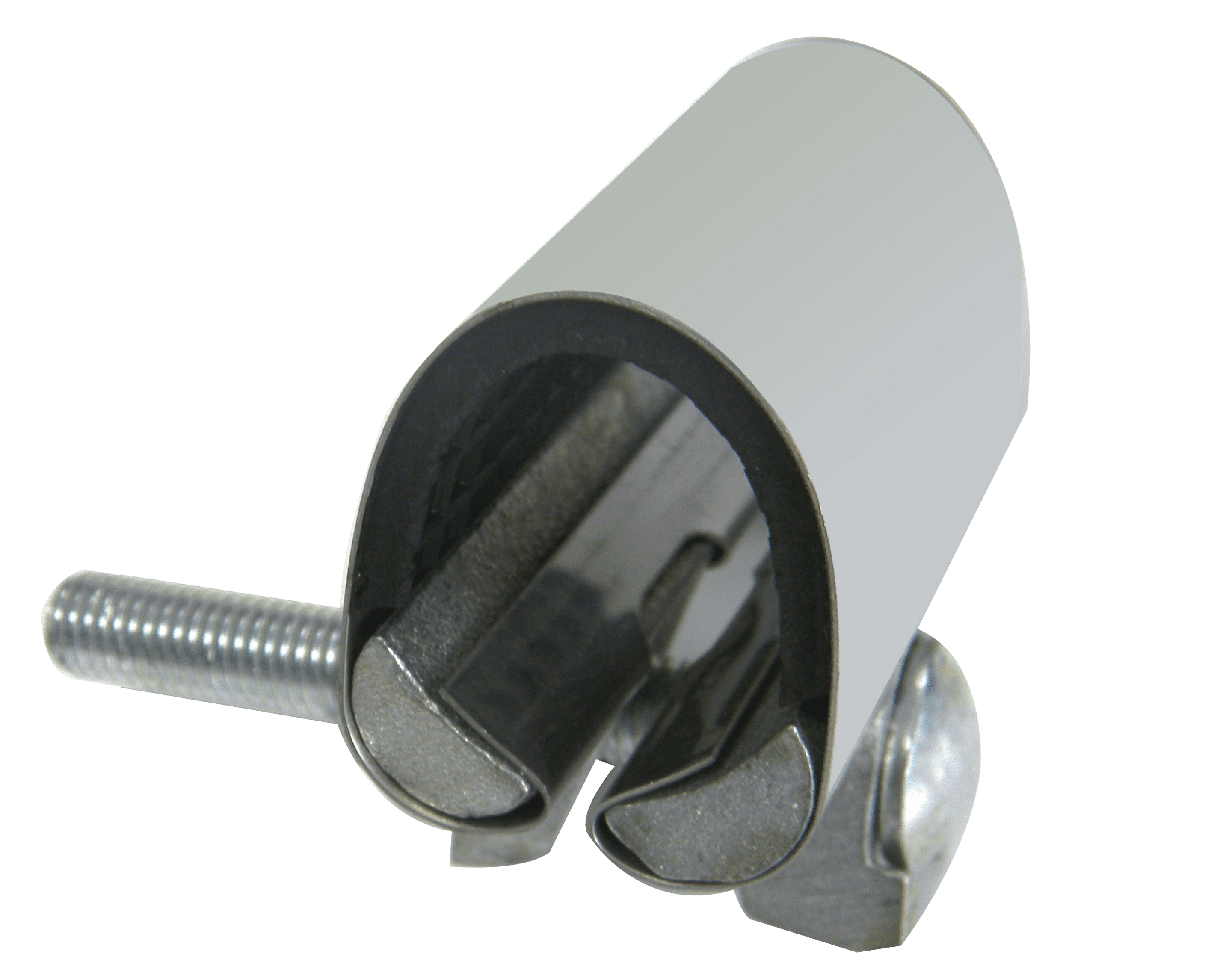

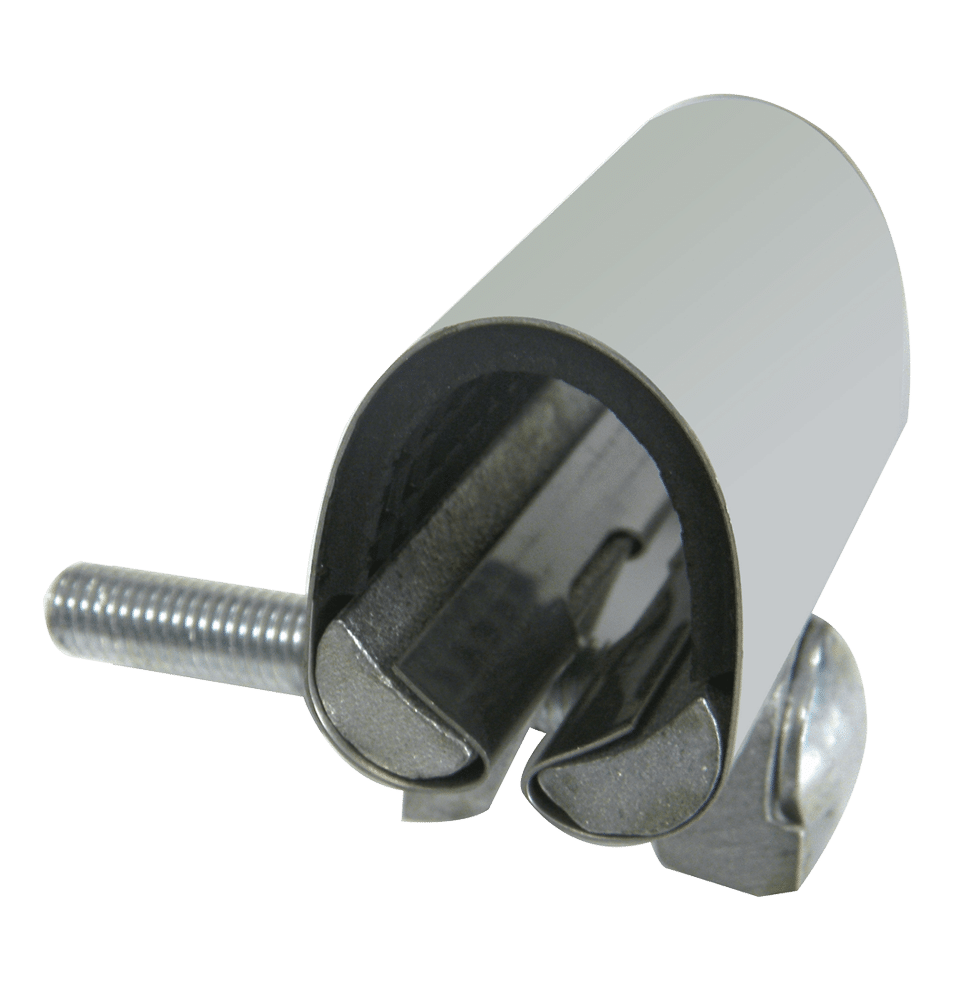

gebounifix Mini

What to know about our Unifix Mini:

They are suitable for sealing holes, fractures and porous areas in water-bearing pipes with a smooth surface.

Honeycombed structure of the sealing (EPDM, water approved) provides an improved compensation for pipe irregularities.

The installation of Mini in tight locations (7 mm suffice!) is easy.

Suitable for:

Steel pipe,
Black steel pipe,
Stainless steel pipe,
Copper pipe

and the temporary repair of cold water-bearing:

PE pipe,
PVC pipe and
multilayer pipes

Pressure levels:

Water PN 10; Temperatures: Water to 90 °C

60mm

Length [mm]	Pipe diameter-Ø [mm]	Code
60	21 – 25	51.01.021025.06
60	26 – 30	51.01.026030.06
60	33 – 37	51.01.033037.06
60	38 – 42	51.01.038042.06
60	42 – 45	51.01.042045.06
60	48 – 51	51.01.048051.06
60	55 – 58	51.01.055058.06
60	60 – 64	51.01.060064.06
60	69 – 73	51.01.069073.06
60	74 – 80	51.01.074080.06
60	87 – 93	51.01.087093.06

100mm

Length [mm]	Pipe diameter-Ø [mm]	Code
100	21 – 25	51.01.021025.10
100	26 – 30	51.01.026030.10
100	33 – 37	51.01.033037.10
100	42 – 45	51.01.042045.10
100	48 – 51	51.01.048051.10
100	55 – 58	51.01.055058.10
100	60 – 64	51.01.060064.10
100	69 – 73	51.01.069073.10
100	74 – 80	51.01.074080.10
100	87 – 93	51.01.087093.10
