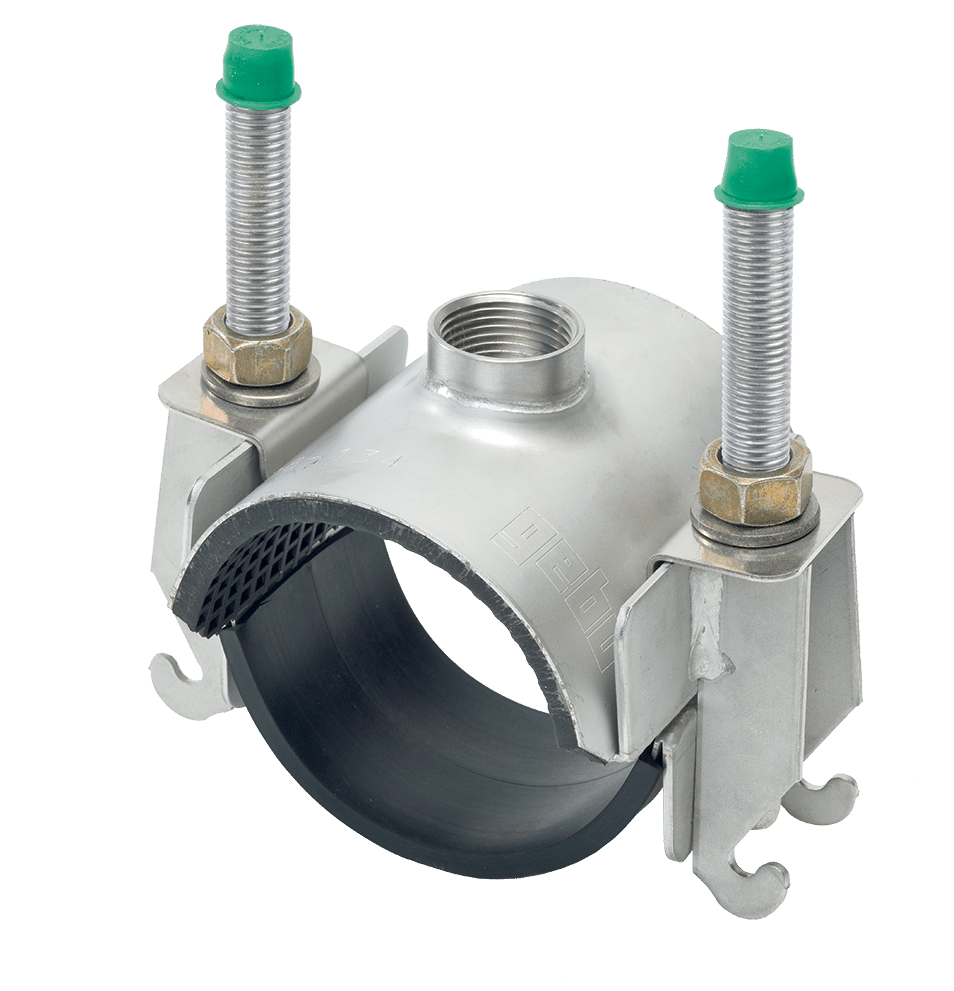

gebounifix tapping saddle

About our tapping saddles:

Suitable for creating branches in water- or gas-bearing pipes (Caution: only for gas-bearing pipes outside of buildings).

The tapping saddles are made of stainless steel 1.4301 (V2A) similar to AISI 304 and are available equipped with EPDM (for water only) or NBR (for gas) seals.

The mounting bands are also made of stainless steel and the inside lined with a smooth rubber collar. This prevents damage, particularly in plastic pipes and prevents the tapping saddle from slipping.

Female thread outlets:

½” · ¾” · 1″ · 1 ¼” · 1 ½” · 2″

Length:

125 mm at branches up to 1 ¼“; 150 mm at branches up to 1 ½“

Tapping saddle

with female thread

Pipe outer-Ø [mm]	Connecting thread [inch]	Code
88 – 110	1/2"	51.21.088110.12.1
DN 80	3/4"	51.21.088110.12.2
	1"	51.21.088110.12.3
	1 1/4"	51.21.088110.12.4
108 – 134	1/2"	51.21.108134.12.1
DN 100	3/4"	51.21.108134.12.2
	1"	51.21.108134.12.3
	1 1/4"	51.21.108134.12.4
	1 1/2"	51.21.108134.12.5
	2"	51.21.108134.12.6
114 – 139	1/2"	51.21.114139.12.1
DN 125	3/4"	51.21.114139.12.2
	1"	51.21.114139.12.3
	1 1/4"	51.21.114139.12.4
	1 1/2"	51.21.114139.12.5
	2"	51.21.114139.12.6
138 – 160	1/2"	51.21.138160.15.1
DN 150	3/4"	51.21.138160.15.2
	1"	51.21.138160.15.3
	1 1/4"	51.21.138160.15.4
	1 1/2"	51.21.138160.15.5
	2"	51.21.138160.15.6
159 – 180	1/2"	51.21.159180.15.1
DN 175	3/4"	51.21.159180.15.2
	1"	51.21.159180.15.3
	1 1/4"	51.21.159180.15.4
	1 1/2"	51.21.159180.15.5
	2"	51.21.159180.15.6
190 – 218	1/2"	51.21.190218.15.1
DN 200	3/4"	51.21.190218.15.2
	1"	51.21.190218.15.3
	1 1/4"	51.21.190218.15.4
	1 1/2"	51.21.190218.15.5
	2"	51.21.190218.15.6
216 – 238	1/2"	51.21.216238.15.1
DN 225	3/4"	51.21.216238.15.2
	1"	51.21.216238.15.3
	1 1/4"	51.21.216238.15.4
	1 1/2"	51.21.216238.15.5
	2"	51.21.216238.15.6
230 – 260	1/2"	51.21.230260.15.1
DN 250	3/4"	51.21.230260.15.2
	1"	51.21.230260.15.3
	1 1/4"	51.21.230260.15.4
	1 1/2"	51.21.230260.15.5
	2"	51.21.230260.15.6
265 – 285	1/2"	51.21.265285.15.1
DN 275	3/4"	51.21.265285.15.2
	1"	51.21.265285.15.3
	1 1/4"	51.21.265285.15.4
	1 1/2"	51.21.265285.15.5
	2"	51.21.265285.15.6
